346995 - Bulkhead Upper Assembly, Early Series 3 Lightweight

Shop > 1968 to 1984 - SERIES 2a and SERIES 3 LIGHTWEIGHT > Upper Vent Panels for Series 2a & 3 Lightweight

346995 - Bulkhead Upper Assembly, Early Series 3 Lightweight

  • 346995 - Bulkhead Upper Assembly, Early Series 3 Lightweight

  • Land-Rover Series 3 Lightweight
  • £700.00

:  at  £700.00  each

Manufactured to order. Order as normal, ignoring 'Out of stock' message.

Bulkhead Upper Assembly, Series 3 Lightweight

Panel Assembly, Dash Top Ventilator.

Series 3 'Early' type.

Specification:

  • Series 3 windscreen hinges with 5/16" UNF threads.
  • Large end brackets to accomodate Series 3 type Windscreen Hinges.
  • Holes for windscreen washers and wiper spindles.
  • Brackets for wiper motor and washer bottle.
  • All UNF threaded.

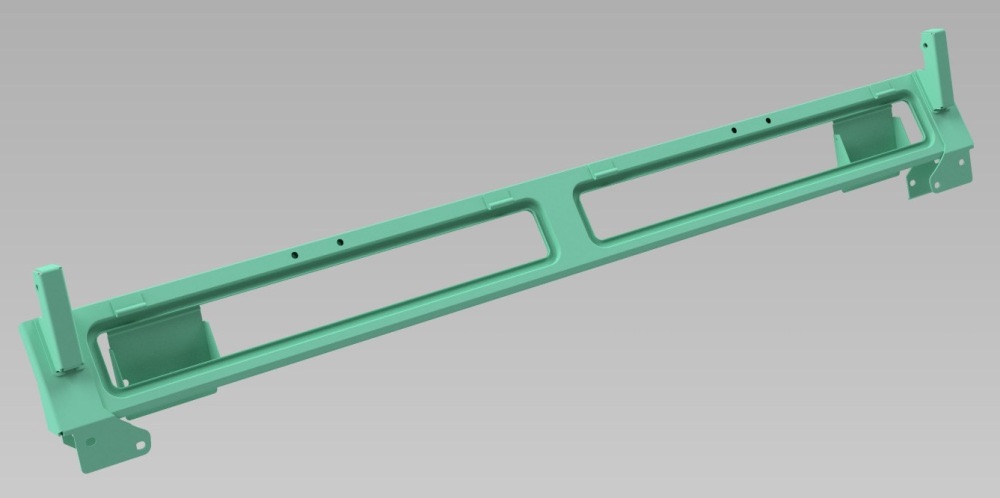

Picture is CAD rendered image. Supplied assembly is finished in red oxide primer.



Not sure which bulkhead you require?

We’re here to help. Contact Us or call Debbie on 0044 1737 301483.

What makes Pegasus Bulkheads unique?

Made by hand in the UK, Pegasus have completed extensive research to the point where we can identify exactly which type of bulkhead you require, based on the year and month your Land-Rover went into production.

Each part has been reverse-engineered and accurately CAD drawn, generating very precise manufacturing drawings to replicate Rover's original specifations.

All component parts are laser cut and CNC folded. The bulkhead assembly is then authentically spot-welded, arc welded, and finally TIG welded on our purpose-made jigs using 36 alignment points.

Authentic designs and Enhanced Performance

As we meticulously replicated every component, we took the opportunity to correct a few weak areas giving you a stronger bulkhead while keeping everything looking as original as possible.

Stand the test of time

Your brand-new bulkhead will fit like the original, look like the original, and will last like the original too.

High-quality surface finish

All our bulkheads are protected with a red oxide primer, free of charge, ready for the next coat of paint.

Interested in finance options?

We can now offer finance options to help you spread the cost over a period of time. No matter what your budget is, you can pay for a Pegasus Bulkhead in small monthly instalments to suit your needs.
